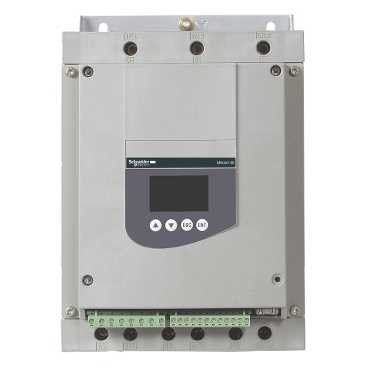

ATS48D17Q
Schneider Electric SE
施耐德(SCHNEIDER) 电机软启动器 Schneider Electric component ATS48D17Q: soft starter for asynchronous motor - ATS48 - 14.8 A - 230..415 V - 3..15 KW Schneider Electric ATS48 系列 17 A 软启动器, IP20, 7.5 kW, 230 → 415 V
规格参数
合规参数
| 参数 | 值 |
|---|---|
| 标准 | EN/IEC 60947-4-2 |
| 合规性 | Conducted and radiated emissions conforming to IEC 60947-4-2 level AConducted and radiated emissions conforming to IEC 60947-4-2 level BDamped oscillating waves conforming to IEC 61000-4-12 level 3Electrostatic discharge conforming to IEC 61000-4-2 level 3Immunity to electrical transients conforming to IEC 61000-4-4 level 4Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3Voltage/current impulse conforming to IEC 61000-4-5 level 3 |
| 防护类型 | Phase failure (line)Thermal protection (motor)Thermal protection (starter) |
| 认证 | CCCCSAC-TickDNVGOSTNOM 117SEPROTCFUL |
电气参数
| 参数 | 值 |
|---|---|
| 输出端 | (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO |
| 电路 | 30 W |
| 数据速率 | 4800, 9600 or 19200 bps |
| 接口 | RS485 multidrop |
| 输出信号 | (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm |
| 额定功率 | 7.5 kW |
| 额定输出功率 | 7.5 kW at 230 V (connection to the motor delta terminals) for standard applications7.5 kW at 400 V (connection in the motor supply line) for standard applications11 kW at 400 V (connection to the motor delta terminals) for severe applications15 kW at 400 V (connection to the motor delta terminals) for standard applications3 kW at 230 V (connection in the motor supply line) for severe applications4 kW at 230 V (connection in the motor supply line) for standard applications5.5 kW at 230 V (connection to the motor delta terminals) for severe applications5.5 kW at 400 V (connection in the motor supply line) for severe applications |
| 额定电压 | 415 V |
| 频率范围 | 47.5...63 Hz |
| 输出电流 | Adjustable 0.4...1.3 Icl |
| 供电电压 | 50...60 Hz (- 5...5 %) |
| 感应电流 | 14.8 A |
| 输出数量 | 2 |
| 输出分辨率 | +/- 5 % |
| 开关电流 | Relay outputs 10 mA at 6 V DC |
| 最大额定电流 | Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms |
| 输出1频率 | 3 |
| 最小输入电压 | 24 V (<= 30 V) |
| 最大功耗 | 46 W for severe applications59 W for standard applications |
| 集电极-发射极击穿电压（最大） | 220 至 415 V |
机械参数
| 参数 | 值 |
|---|---|
| 深度 | 190 mm |
| 宽度 | 160 mm |
| 高度 | 275 mm |
| 重量 | 4.9 kg |
| 启动方式 | Start with torque control (current limited to 5 In) |
| 连接器类型 | 1 RJ45 |
| 安装样式 | With heat sink |
| 总长度 | 190mm |
| 供应商器件封装 | ATS48 |
产品信息
| 参数 | 值 |
|---|---|
| 用途 | AC-53A |
| 系列 | ATS48 |
| 功能 | External bypass (optional) |
| 协议 | Modbus |
| 标签类型 | CE |
| 产品子类型 | Soft starter |
| 总线连接 | In the motor supply lineTo the motor delta terminals |
| 通信接口 | Serial |
| 测量范围 | Altistart 48 |
| 工作高度 | Vertical +/- 10 degree |
| 其他规格 | PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| 应用细节 | Pumping and ventilation machineSevere and standard applications |
| RAM容量/已安装 | 31 |
| 输入数量及类型 | 5 |
| 适用产品/相关产品 | Asynchronous motors |
环境参数
| 参数 | 值 |
|---|---|
| 密封等级 | 17 A (connection in the motor supply line) for standard applications12 A (connection in the motor supply line) for severe applications22 A (connection to the motor delta terminals) for severe applications29 A (connection to the motor delta terminals) for standard applications |
| 冷却类型 | Natural convection |
| 湿度范围 | <= 95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| 抗冲击能力 | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| 存储接口 | -25...70 °C |
| 防护等级 | Level 3 conforming to IEC 60664-1 |
| 工作压力 | <= 1000 m without derating> 1000...2000 m with current derating of 2.2 % per additional 100 m |
| 抗振性 | 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-61.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6 |
| 工作温度 | -10...40 °C without derating> 40...60 °C with current derating of 2 % per °C |
