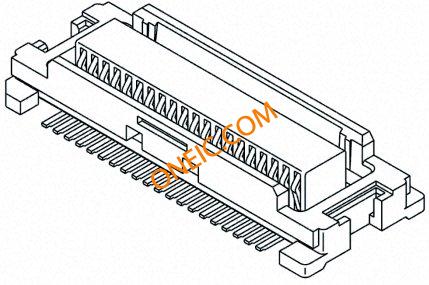

54167-0308
Conn Board to Board F 30 POS 0.5mm Solder ST SMD Embossed T/R CONN RCPT 30POS 4MM SMD .5MM CONN RECEPT 30POS 4MM SMD .5MM CONN RCPT 30POS VERT .5MM SMD Molex 0.5mm 30 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 30 Ckt Vert. Recept 0.5mm SMT Dual-Row RECEPTACLE, STACKING, 30POS, 2ROW Molex SLIMSTACK 系列 2行 30路 直 0.5mm节距 表面贴装 印刷电路板插座, 板对板
规格参数
商业参数
| 参数 | 值 |
|---|---|
| 商标名 | SlimStack |
| 其他名称 | WM6490CT |
| 零件号别名 | 0541670308 |
| 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 |
合规参数
| 参数 | 值 |
|---|---|
| RoHS | Lead free / RoHS Compliant |
| 海关税号 | 85366930 |
电气参数
| 参数 | 值 |
|---|---|
| 额定电压 | 50 V ac |
| 最大额定电流 | 0.5A |
机械参数
| 参数 | 值 |
|---|---|
| 间距 | 0.5 mm |
| 重量 | 0.02 |
| 包装方式 | Tape & Reel (TR) |
| 端接方式 | Solder |
| 柱间距 | :4mm |
| 安装类型 | Surface Mount |
| 连接器类型 | Receptacle, Center Strip Contacts |
| 接触镀层 | Gold Over Nickel |
| 排数 | 2 |
| 触头材料 | Brass |
| 壳体材料 | Liquid Crystal Polymer (LCP) |
| 端接样式 | SMD |
| 板面高度 | 0.089" (2.26mm) |
| 触点数 | 30 |
| 接触件端接 | :Surface Mount Vertical |
| 位数 | 30 |
| 配接堆叠高度 | 3mm, 4mm |
| 接触镀层厚度 | 3.9µin (0.10µm) |
产品信息
| 参数 | 值 |
|---|---|
| 类型 | Board to Board |
| 连接器性别 | F |
| 系列 | 54167 |
| 产品子类型 | Receptacles |
