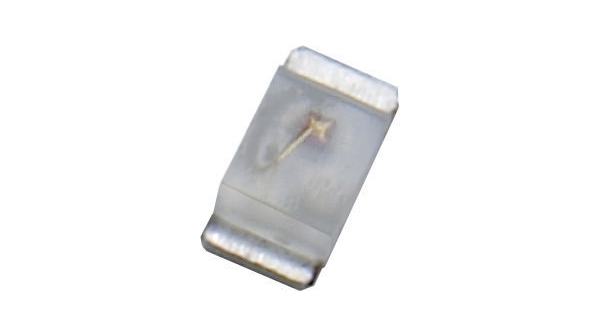

ASMT-RJ45-AQ502
LED ORANGE DIFFUSED 0603 SMD SMD LED orange 1.6...2.4 V 0603, ASMT-RJ45-AQ502, Broadcom Broadcom ASMT 系列 橙色 (605 nm 主波长) LED , 2 V, 130 mcd, 145 °视角 1608 (0603) 贴装
规格参数
电气参数
| 参数 | 值 |
|---|---|
| LED | 1 |
| 灯类型 | 透明 |
| 供电电压 | 1.6...2.4 V |
| 峰值波长 | 612 |
| 主波长 | 605 |
| LED触发电流（最大） | 20 mA |
机械参数
| 参数 | 值 |
|---|---|
| 封装体颜色 | colourless |
| 发光颜色 | orange |
| 安装类型 | 表面安装 |
| 封装形式 | 0603 |
| 透镜样式/尺寸 | 145 ° |
| 包装数量 | 1608 (0603) |
| 尺寸/外形 | 1.6 x 0.8 x 0.45mm |
| 触点数 | 2 |
产品信息
| 参数 | 值 |
|---|---|
| 系列 | ASMT |
| 光学元件形状 | 矩形 |
| 入射角（AOI） | 130...145 ° |
环境参数
| 参数 | 值 |
|---|---|
| 光通量 @ 电流/温度 | 71 mcd |
